Modern Workflow

Department of Sociology | University of Texas at Austin

Casey Breen

Workflow and collaboration tools

• One-hour session

• Materials:

  • www.github.com/caseybreen/workflow

Session goals

High-level introduction to three tools:

1. Git + GitHub

1. Latex / Overleaf / Markdown (Quarto)

1. Zotero for managing references

Why invest in improving your workflow?

• Can help you become a more efficient researcher

• Facilitates collaboration

• Open Science + improve replicability of findings

Git and GitHub

• Git: version-control system for tracking changes in code
• GitHub: web-based hosting service for repositories that use Git

Key advantages of GitHub

• Version control helps track changes to code; easy to revert if you made a mistake

• Work across computers / servers

• Helpful for putting together replication packages

GitHub Project Management

• All files and code organized into a repository

• Repository can have have different files and subfolders

  • Readme file, code folder, survey instrument folder,

  • Not good for storing data!

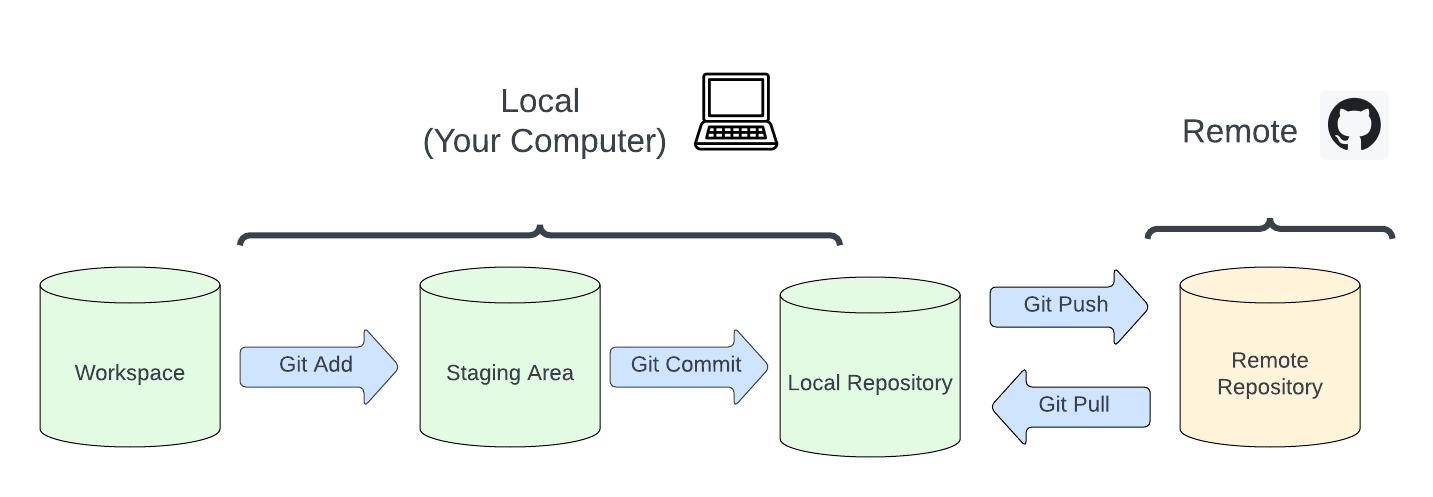

GitHub Workflow

GitHub Workflow – Git Add

To add files to staging area:

## add all changed files
git add -A

## add specific file
git add /path/to/file/file.txt

GitHub Workflow – Git Commit

Commit changes

## commit changes
git commit -m "add an informative message here"

GitHub Workflow – Git Push

Send (“push”) your changes up to remote repository (where collaborators / public can see)

## add all changed files
git push

GitHub Workflow – Git Pull

Pull down changes from repository (e.g., changes your collaborator made)

git pull

Other features

• Git Clone: Clone a remote repository to your local machine

## general command
git clone https://github.com/username/repository-name.git

## clone the repository for this class
git clone https://github.com/username/repository-name.git

• Git fork: Copy a (public) repository to have your own version

• Branches: Isolated enviroment for development, merge back in with man codebase when you’re ready

Link to Open Science Framework repository

• Create public GitHub repository with replication code + instructions for a mansucript

• Link that repository to an Open Science Framework Repository

  • Upload data etc.

• Share DOI (permanent identifier) in paper

Live Demo

• Adding new file to GitHub repository

• OSF / GitHub replication package

Exercises (at home)

1. Create a new Github repository

2. Clone this GitHub repository to your local machine

3. ‘Push’ an R markdown script to your GitHub Repository

LaTeX/Overleaf

LaTex

• Latex is a high-quality typesetting system for writing scientific documents

• Free, open source — customizable, extendable

• Learning curve!

Insert equations

• Use $ or \begin{equation} to enter equation mode

• h(x) = αeβx

  h(x) = αe^βx

Nicely handle refereces

• Create a .bib file from list of reference

• Automatically write out reference list

  • bibtex, natbib

• In-text citations:

  • = (Gupta 2019)

  • = Gupta (2019)

Simplify tables + figures management

• Include figures in text

\begin{figure}[!htb]
    \centering
    \includegraphics[width = .9\textwidth]{figs/tanganyika_map.png}
    \caption{Tanganyika province with three Zone de Santes highlighted.}
    \label{fig:map}
\end{figure}

• Reference figures and tables in text using label

  • will render “Figure 4”

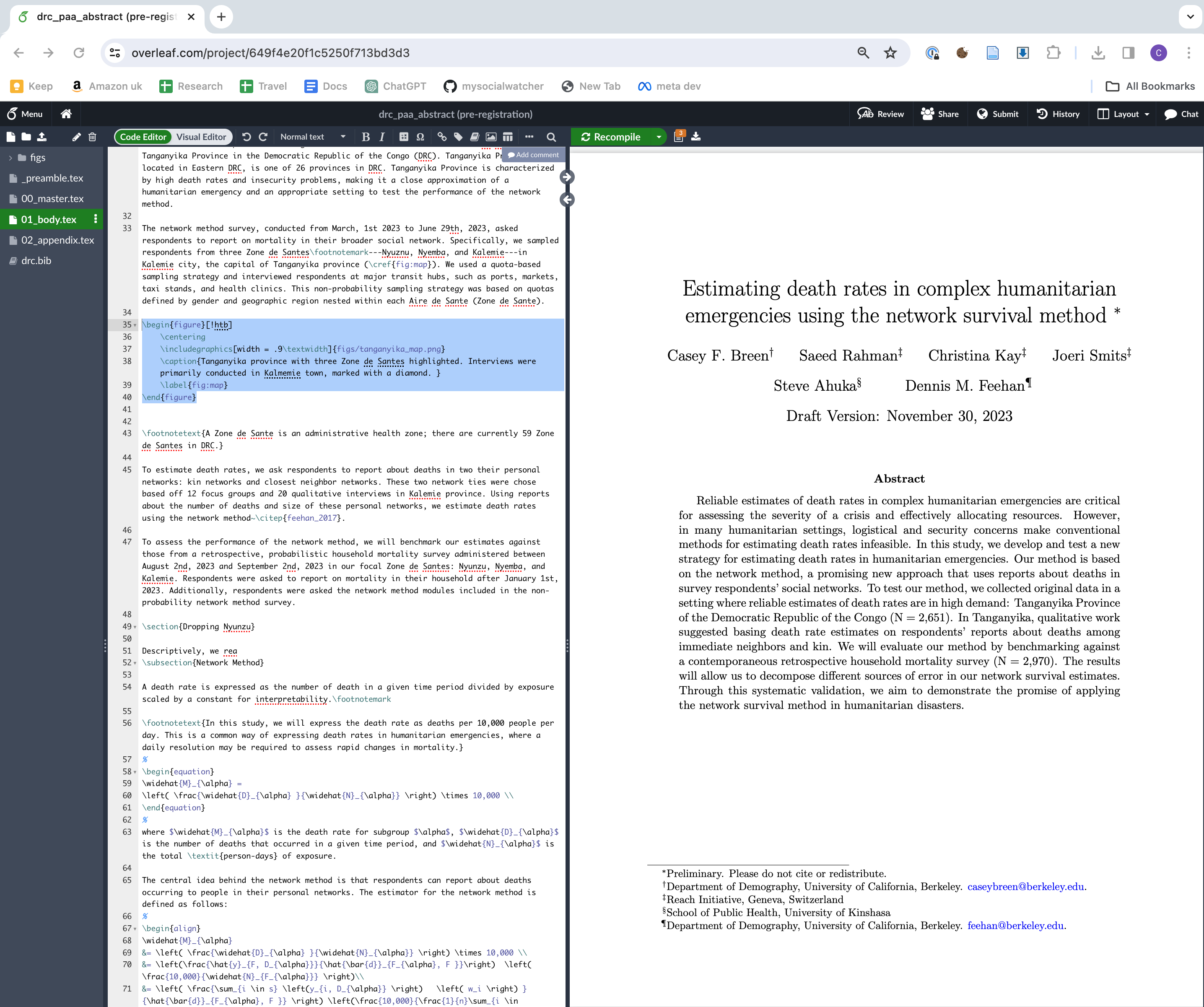

Overleaf

• Google Docs for LaTeX
• See .tex code and the compiled PDF at the same time
• Great for collaborating

Live Demo + Casey templates

• Latex CV

• Beamer Slides

• Latex Manuscript

Exercises (at home)

1. Create a new overleaf project

2. Upload and insert a new figure

3. Write out a mathematical equation

4. Share the overleaf document with a friend

R users: Quarto (markdown)

• Designed for writing code

  • Interwoven text and code chunks

• Can also write papers, take notes, make slides

• Markdown is simpler than Latex, but fewer features / less resources for help

Zotero for reference management

Zotero

• Free tool for simplifying reference management

• Organize, annotate, and track references across devices

Simple Zotero workflow

1. Add papers to Zotero to “collection”

   • Collection = set of references for one project

1. Generate .bibtex file (or individual citations)

1. Move .bibtex file to paper repository

Zotero tips

• Zotero connector: browser plug-in the automatically add and pdf paper to a collection

• Better Bibtex: help customize the different citation keys

• Create shared libraries when working with collaborators

Zotero live demo

• Creating new library

• Adding paper using connector (or drag-and-drop pdf)

• Generating bibtex file

Exercises (at home)

1. Create a new Zotero collection

2. Add 3 papers to the new collection (use Zotero connector or drag in PDFs)

3. Export the .bibtex file to Overleaf

Takeaways

• Lots of exciting resources for improving workflow

  • Many resources not mentioned

• Pick workflow that works best for you

  • Definitely worth investing in your workflow!

More resources

• Github: Happy Git with R
• LaTeX: Learn Latex in 30 Minutes, Not-so-short introduction to LaTeX
• Zotero: Getting Started with Zotero

Questions?

• Thanks for your attendance and participation

• Questions?
